SBC Voltage Drive

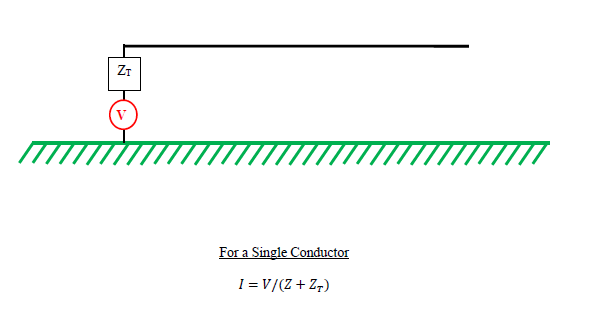

An SBC voltage source is applied at the end of a conductor as illustrated below. The end can have a terminating circuit. The term, ‘SBC’ stands for ‘Series Boundary Condition’ as it puts the voltage source in series with the MHARNESS termination so voltage drop across a specified termination can be seen. Any allowable circuit termination can be specified. If a terminal conductance is defined, then an error message will be issued.
